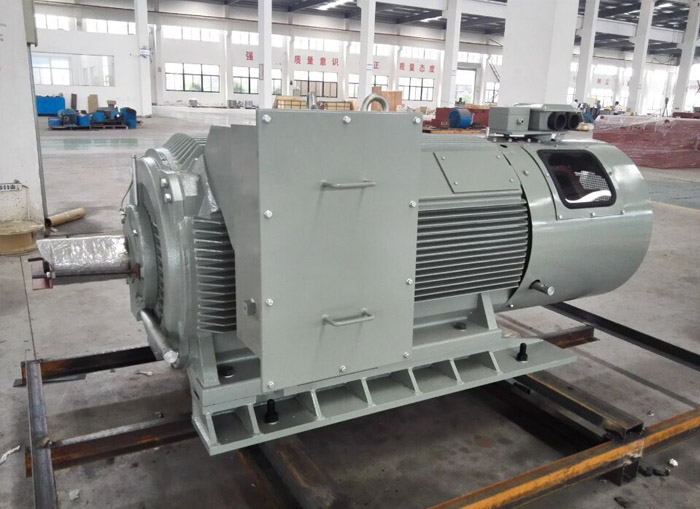

Motor Type: YR/YRKK Series Motors
Power Rating: 185~4500 kW
Center Height: IEC H 355~H1000
Pole Configuration: 2P~12P
Rated Voltage: 3.3KV/6KV/10KV
Rated Current: 50 Hz or 60 Hz
Protection Rating: IP23/IP55
Cooling Method: IC01/IC611
Insulation Class: F
Altitude: ≤1000M
This series of motors utilizes high-permeability, low-loss cold-rolled grain-oriented silicon steel sheets. They feature high efficiency, energy savings, low vibration, low noise, reliable performance, and convenient installation and maintenance. Suitable for driving various general-purpose machinery such as compressors, fans, pumps, crushers, and other mechanical equipment, they can also serve as prime movers in harsh environments including petroleum, chemical, pharmaceutical, mining, and other demanding applications.
